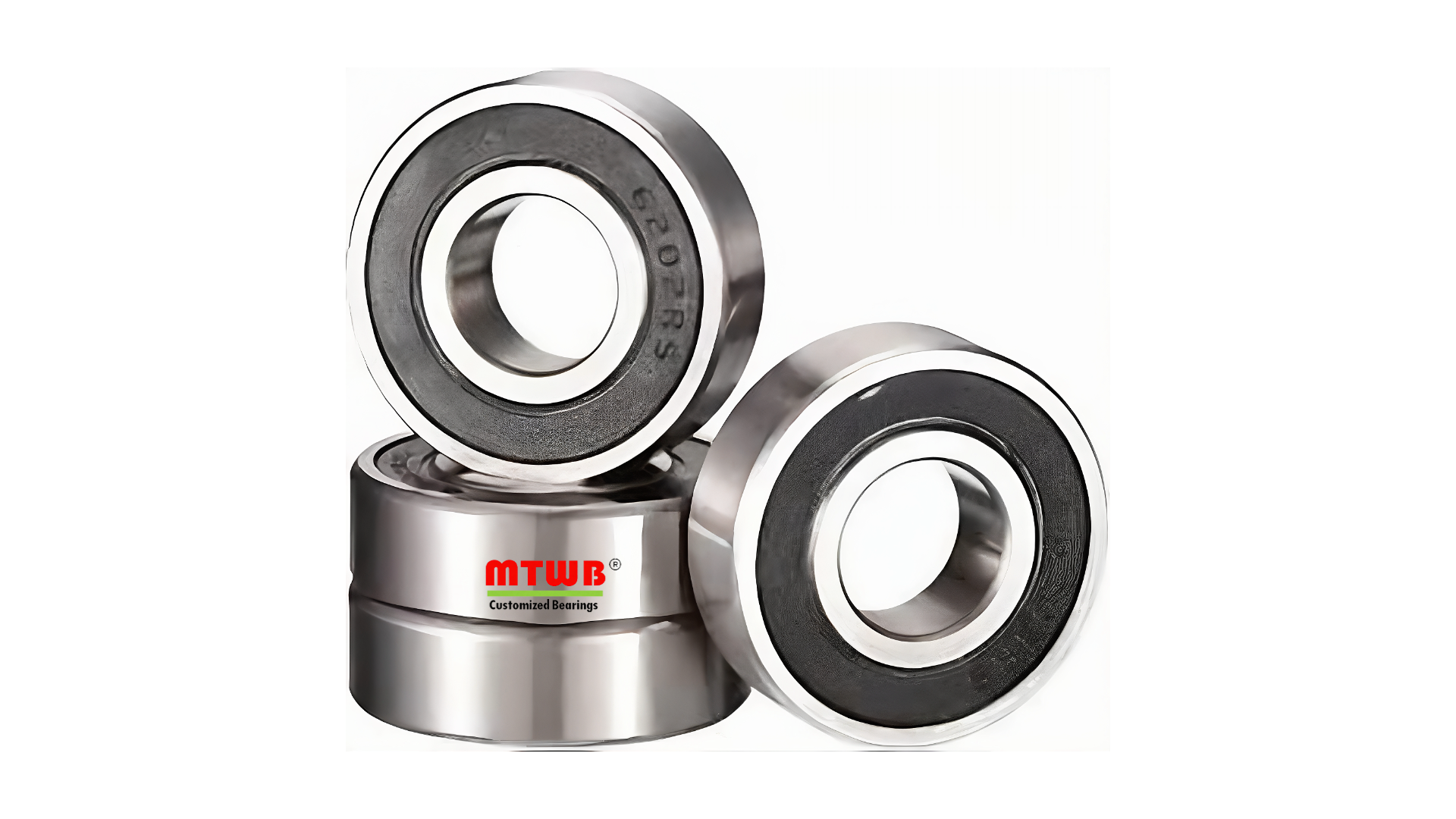

The MTWB 6202 Low Noise EMQ Bearing is a precision-engineered deep groove ball bearing designed for applications demanding exceptional rotational accuracy, minimal vibration, and whisper-quiet operation. As part of MTWB technical breakthrough in miniature and small deep groove ball bearing (DGBB) manufacturing, this bearing leverages advanced production technology, precision grinding, and stringent quality control to deliver outstanding performance in high-speed, low-noise environments.
With standard dimensions of 15 mm bore diameter, 35 mm outer diameter, and 11 mm width, the 6202 EMQ bearing is fully interchangeable with ISO-standard 6202 bearings, making it a drop-in replacement for countless applications worldwide.
1. Electric Motor Quality (EMQ) Certification
The 6202 Low Noise EMQ Bearing is engineered specifically for electric motor applications requiring reduced noise and vibration levels. By implementing targeted quality control during the grinding process of the inner ring raceway, MTWB significantly reduces bearing noise. Our high-precision machines and top-notch techniques refine every aspect of the bearing – from the raceways to the balls – ensuring they exceed industry standards.
2. Rigorous Noise & Vibration Testing
MTWB conducts 100% inspection on every bearing before it leaves the factory. Noise detection is available across Z1, Z2, Z3, and Z4 levels, while vibration detection is classified as V1, V2, V3, and V4. Customers can select different levels based on specific application requirements. Through these rigorous testing and evaluation procedures, we guarantee that every batch meets the criteria for low noise and high efficiency.
3. Premium Material Selection
We choose only the finest materials, including G95Cr18 and GCr15 bearing steels, plus corrosion-resistant 300-series stainless steel. These top-grade materials ensure your bearings are strong, durable, and whisper-quiet, ready to perform flawlessly for the long haul.
4. Superior Surface Finishing
Raceways are super-finished to produce mirror-like surfaces, while high-quality balls with near-perfect sphericity are used to minimize high-frequency noise and vibration. Geometrical tolerances control features such as roundness, concentricity, runout, and parallelism.
5. Optimal Lubrication
MTWB bearings are typically lubricated with antirust oil for open bearings or lithium-based grease for sealed bearings. Custom grease specifications are available according to customer requirements. Sealed versions are pre-lubricated for life and require no maintenance.
6. Customization Options
MTWB offers design optimization services, including special raceway curvature design to improve lubrication efficiency. Custom internal clearances (CN, C3, C4), sealing configurations (open, ZZ metal shields, 2RS rubber seals), and precision grades are available to meet specific application needs.
For other miniature low-noise applications, see our
62202 bearing, 62203 bearing, LV20/7 Bearing, LV20/8 Bearing, SG20 Bearing, SG25 Bearing ,SR620 Bearing,SR824 Bearing, SR1028 Bearing, SR1232 Bearing
The 6202 Low Noise EMQ Bearing is widely used across diverse industries:
●Electric Motors & Generators – Quiet operation is critical for motor efficiency and longevity
●Power Tools – Angle grinders, drills, hammers, and picks
●Automotive Systems – Electric motors, transmissions, wheel bearings
●Household Appliances – Washing machines, fans, vacuum cleaners
●Industrial Machinery – Conveyor systems, pumps, gearboxes
●Medical Devices – Precision instruments requiring ultra-low noise
●Robotics & Automation – High-speed, precision motion control
●Agricultural Machinery – Pumps, drives, and equipment
World-Class Manufacturing Capability
MTWB has achieved significant technical breakthroughs in miniature and small deep groove ball bearing manufacturing, offering a full range from 0.6 mm ID to 380 mm OD at P4 precision class. This depth of expertise ensures that every 6202 bearing benefits from the same precision engineering that produces the world’s smallest ball bearing.
“Zero-Error” Production Philosophy
MTWB commitment to “Zero-Error” production means every bearing undergoes rigorous quality control at every manufacturing stage. From raceway grinding to final assembly, our high-precision machines and top-notch techniques refine every aspect of the bearing.
Guaranteed Quiet Performance
We don’t just say MTWB bearings are quiet – we guarantee it. Our 100% inspection protocol for sealing effect and noise/vibration testing ensures that every bearing that leaves our factory meets the highest standards of low-noise performance.
Customization Expertise
MTWB offers comprehensive customization services, including:
●Design Optimization – Special internal geometry for improved lubrication efficiency
●Lubricant Selection – Custom grease formulations for specific operating conditions
●Precision Grades – Available in P0, P6, and P5 (ABEC 1, 3, 5)
●Sealing Options – Open, ZZ (metal shields), 2RS (rubber seals)
Proven Material Quality
MTWB sources only the finest materials – G95Cr18, GCr15 bearing steels, and corrosion-resistant 300-series stainless steel – ensuring strength, durability, and whisper-quiet operation.
●Guaranteed EMQ Performance – Every bearing is tested and certified for low noise and low vibration
●ISO-Standard Dimensions – Drop-in replacement for all 6202 bearing applications
●Superior Materials – Premium bearing steels and stainless steel options
●Rigorous Quality Control – 100% inspection and testing before shipping
●Customization Available – Tailored to your specific application requirements
●Proven Technical Expertise – From the world’s smallest ball bearing to full-range precision bearings
●Competitive Pricing – Premium quality at factory-direct prices
